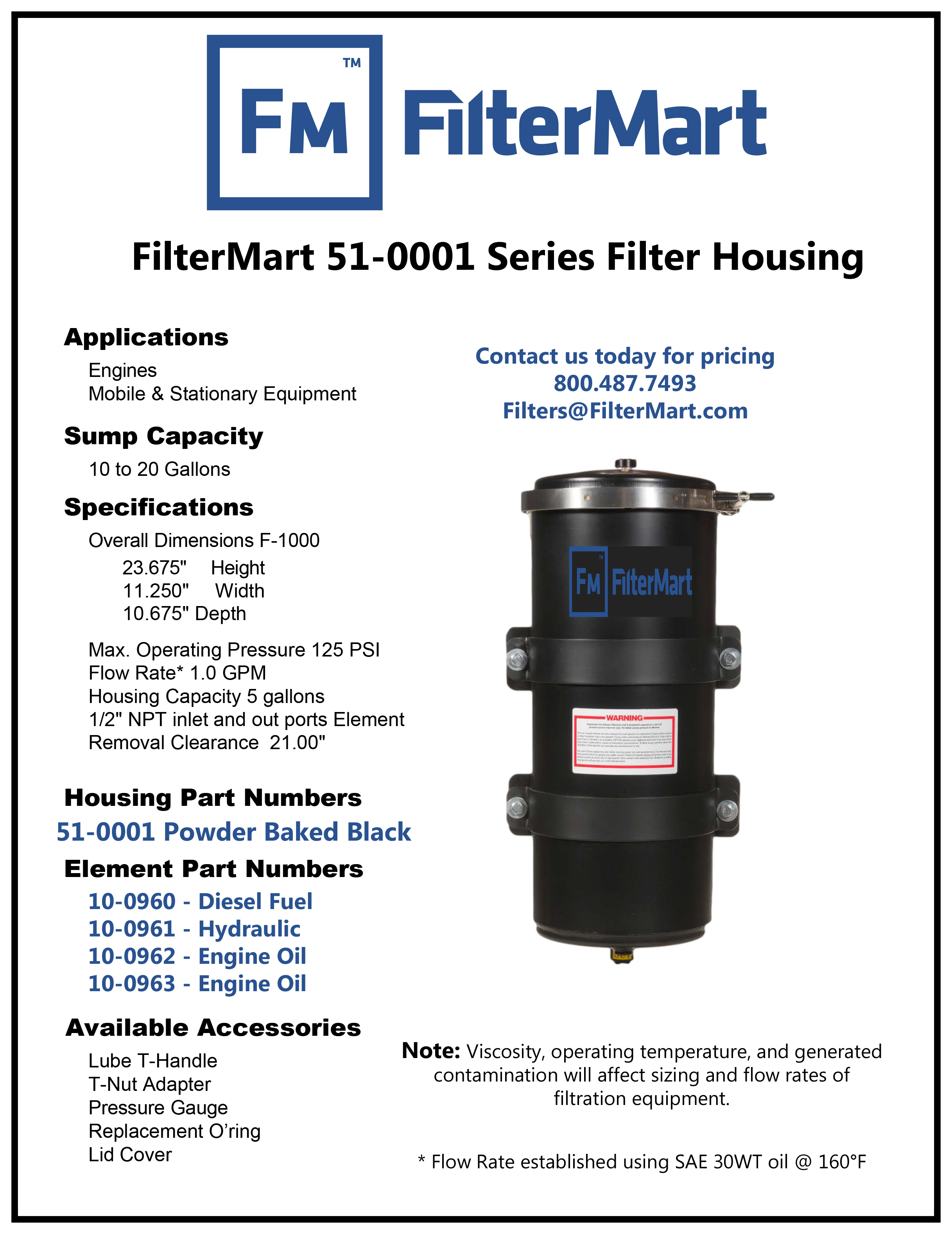

51-0001 Series Filter Housing
Applications
- Engines
- Mobile & Stationary Equipment
Sump Capacity
10 to 20 Gallons
Specifications
- Overall Dimensions F-1000
- 23.675" Height
- 11.250" Width
- 10.675" Depth
- Max. Operating Pressure 125 PSI
- Flow Rate 1.0 GPM (established using SAE 30WT oil @ 160°F)
- Housing Capacity 5 gallons
- 1/2" NPT inlet and out ports
- Element Removal Clearance 21.00"
Housing Part Numbers
- 51-0001 Powder Baked Black
Element Part Numbers
- 10-0960 - Diesel Fuel
- 10-0961 - Hydraulic
- 10-0962 - Engine Oil
- 10-0963 - Engine Oil
Available Accessories
- Lub T-Handle
- T-Nut Adapter
- Pressure Gauge
- Replacement O'ring
- Lid Cover
Note: Viscosity, operating temperature, and generated contamination will affect sizing and flow rates of filtration equipment.
