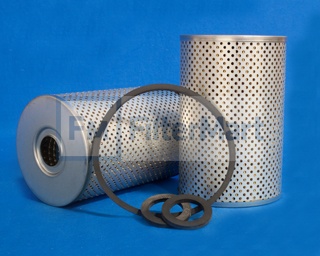

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-0247

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.00 IN (101.60 MM)
  (B) Outer Diameter, Bottom:	4.00 IN (101.60 MM)
  (C) Inner Diameter, Top:	1.06 IN (26.92 MM)
  (D) Inner Diameter, Bottom:	1.06 IN (26.92 MM)
  (E) Length:	5.94 IN (26.92 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	YES - METAL
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	11.70 LB (5.31 KG)
