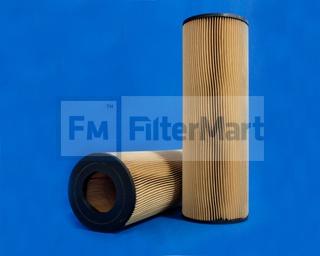

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-0253

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	30 PSID
  Maximum Temperature:	200 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	6.19 IN (157.23 MM)
  (B) Outer Diameter, Bottom:	6.19 IN (157.23 MM)
  (C) Inner Diameter, Top:	3.19 IN (81.03 MM)
  (D) Inner Diameter, Bottom:	3.19 IN (81.03 MM)
  (E) Length:	17.88 IN (81.03 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	PVC
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLASTISOL
  Center Tube:	NONE
  Type of Media:	PAPER
  Filter Area:	64 SQ.FT.
  Plating:	NONE
  Outer Jacket:	NONE - NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	6
  Carton Weight:	14.00 LB (6.35 KG)
