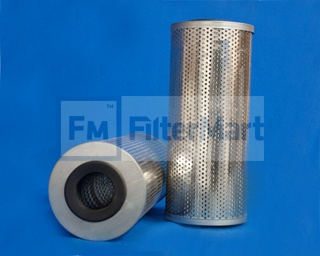

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-0472

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	3.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	100 PSID
  Maximum Temperature:	275 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.88 IN (98.55 MM)
  (B) Outer Diameter, Bottom:	3.88 IN (98.55 MM)
  (C) Inner Diameter, Top:	1.56 IN (39.62 MM)
  (D) Inner Diameter, Bottom:	1.56 IN (39.62 MM)
  (E) Length:	9.25 IN (39.62 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	EPR
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	YES - METAL
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	12
  Carton Weight:	13.00 LB (5.90 KG)
