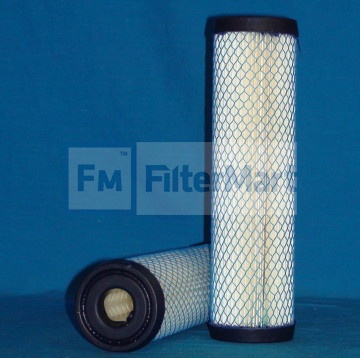

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-1019

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*25 per carton

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	3.00 NOMINAL
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:	275 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.60 IN (66.04 MM)
  (C) Inner Diameter, Top:	1.00 IN (25.40 MM)
  (E) Length:	9.80 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	MOLDED
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:

• Packaging Specifications

  Number per Carton:	25
  Carton Weight:	20.00 LB (9.07 KG)
