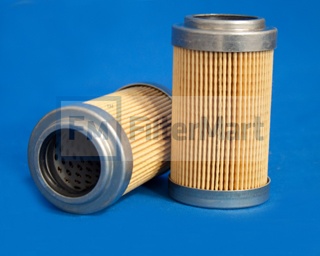

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-1021

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	20.00 20 NOMIN
  Beta Rating:	N.A.
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	275 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.13 IN (54.10 MM)
  (B) Outer Diameter, Bottom:	2.13 IN (54.10 MM)
  (C) Inner Diameter, Top:	1.19 IN (30.23 MM)
  (E) Length:	3.50 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	96 SQ.IN.
  Plating:	ZINC
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	1.00 LB (0.45 KG)
