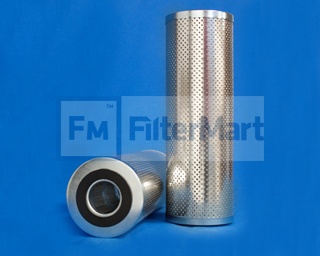

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-1223

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 NOMIAL
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.00 IN (101.60 MM)
  (B) Outer Diameter, Bottom:	4.00 IN (101.60 MM)
  (C) Inner Diameter, Top:	1.63 IN (41.40 MM)
  (D) Inner Diameter, Bottom:	1.63 IN (41.40 MM)
  (E) Length:	9.00 IN (41.40 MM)
  (F) Thread:

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:
  Plating:
  Outer Jacket:	NONE - METAL
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  6
