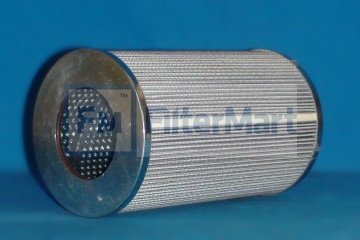

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-2243

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 NOMINAL
  Beta Rating:	B 10=200
  Collapse Pressure Rating:
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	5.07 IN (128.78 MM)
  (B) Outer Diameter, Bottom:	5.07 IN (128.78 MM)
  (C) Inner Diameter, Top:	2.63 IN (66.80 MM)
  (D) Inner Diameter, Bottom:	2.79 IN (70.87 MM)
  (E) Length:	8.74 IN (70.87 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	876 SQ.IN.
  Plating:
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
