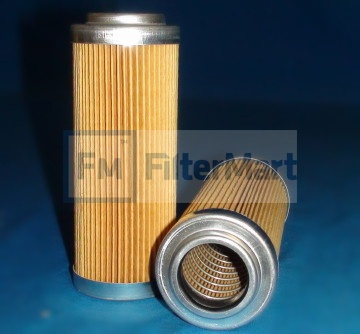

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-3191

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 NOMINAL
  Beta Rating:	N.A.
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	1.75 IN (44.45 MM)
  (B) Outer Diameter, Bottom:	1.75 IN (44.45 MM)
  (C) Inner Diameter, Top:	1.02 IN (25.91 MM)
  (E) Length:	4.43 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	EPOXY
  Type of Endcap:	ALUMINUML
  Center Tube:	SS SPRING
  Type of Media:	PAPER
  Filter Area:	126 SQ. IN.
  Plating:	NONE
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	1.00 LB (0.45 KG)
