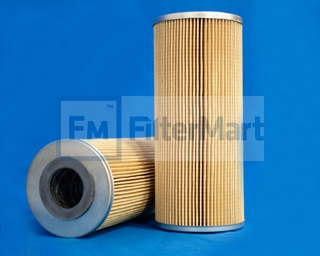

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-3363

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	4.00
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.92 IN (99.57 MM)
  (B) Outer Diameter, Bottom:	3.92 IN (99.57 MM)
  (C) Inner Diameter, Top:	1.61 IN (40.89 MM)
  (D) Inner Diameter, Bottom:	1.61 IN (40.89 MM)
  (E) Length:	9.23 IN (40.89 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	NONE - NONE
  Configuration:	DOUBLE OPEN ENDS

• Packaging Specifications

  Number per Carton:	12
  Carton Weight:	12.70 LB (5.76 KG)
