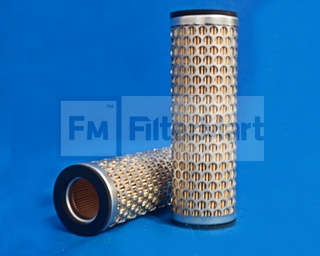

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-3709

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 NOMINAL
  Beta Rating:
  Collapse Pressure Rating:	300 PSI
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.00 IN (50.80 MM)
  (B) Outer Diameter, Bottom:	2.00 IN (50.80 MM)
  (C) Inner Diameter, Top:	1.00 IN (25.40 MM)
  (D) Inner Diameter, Bottom:	1.00 IN (25.40 MM)
  (E) Length:	6.25 IN (25.40 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	NONE
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	12
  Carton Weight:	1.00 LB (0.45 KG)
