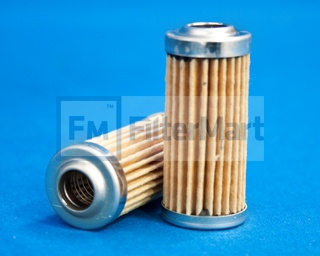

Filtermart™ ARMY-NAVY ELEMENT

Add To Cart

FMC #02-0022

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Paper/Army/Navy

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 10 NOMIN
  Beta Rating:	N/A
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:	275 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	0.83 IN (21.08 MM)
  (B) Outer Diameter, Bottom:	0.83 IN (21.08 MM)
  (C) Inner Diameter, Top:	0.39 IN (9.91 MM)
  (E) Length:	1.78 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	EPOXY
  Type of Endcap:	ALUMINUM
  Center Tube:	STAINLESS STEEL SPRING
  Type of Media:	PAPER
  Filter Area:	20 SQ.IN.
  Plating:	NONE
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	0.50 LB (0.23 KG)
