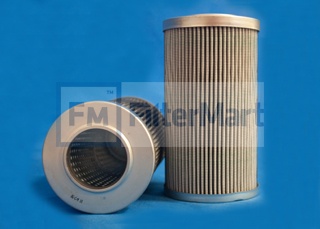

Filtermart™ PLEATED SYNTHETIC ELEMENT

Add To Cart

FMC #04-0027

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Polyester/Polypropylene Water Filtration

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 ABSOLUTE
  Beta Rating:	B10 = 200
  Collapse Pressure Rating:	435 PSI
  Maximum Temperature:	212 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.56 IN (90.42 MM)
  (B) Outer Diameter, Bottom:	6.38 IN (162.05 MM)
  (C) Inner Diameter, Top:	1.90 IN (48.26 MM)
  (E) Length:	6.38 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	SYNTHETIC
  Filter Area:	564 SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	NONE - NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	2.00 LB (0.91 KG)
