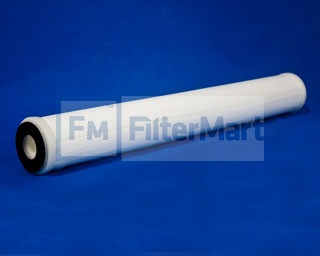

Filtermart™ PLEATED SYNTHETIC ELEMENT

Add To Cart

FMC #04-1010

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Liquid Filters/Pleated Synthetic/Polyester/Polypropylene Water Filtration

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	5.00 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSI
  Maximum Temperature:	140 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.62 IN (66.55 MM)
  (B) Outer Diameter, Bottom:	2.62 IN (66.55 MM)
  (C) Inner Diameter, Top:	1.08 IN (27.43 MM)
  (D) Inner Diameter, Bottom:	1.08 IN (27.43 MM)
  (E) Length:	20.00 IN (27.43 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	EPR
  Type of Adhesive:	POLYPROPYLENE
  Type of Endcap:	POLYPROPYLENE
  Center Tube:	POLYPROPYLENE
  Type of Media:	SYNTHETIC
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	NONE - NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  12
