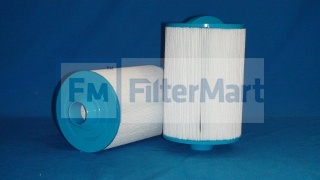

Filtermart™ PLEATED SYNTHETIC ELMENT

Add To Cart

FMC #04-8216

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Polyester/Polypropylene Water Filtration

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	20.00 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	5.63 IN (143.00 MM)
  (B) Outer Diameter, Bottom:	5.63 IN (143.00 MM)
  (D) Inner Diameter, Bottom:	1.50 IN (38.10 MM)
  (E) Length:	8.00 IN (38.10 MM)
  (F) Thread:	1 1/2" MPT

• Physical Specifications

  Handle:	YES
  Seal Material:	MOLDED
  Type of Adhesive:
  Type of Endcap:	POLY
  Center Tube:	POLYPROPYLENE
  Type of Media:	SYNTHETIC
  Filter Area:	35 SQ.FT.
  Plating:	NONE
  Outer Jacket:	NONE - NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
