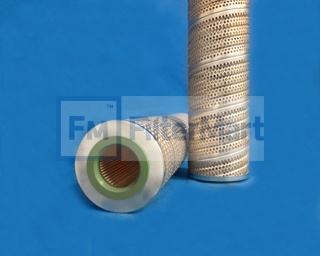

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #05-0297

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:	73 PSID
  Maximum Temperature:	248 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.66 IN (92.96 MM)
  (B) Outer Diameter, Bottom:	3.66 IN (92.96 MM)
  (C) Inner Diameter, Top:	1.73 IN (43.94 MM)
  (D) Inner Diameter, Bottom:	1.73 IN (43.94 MM)
  (E) Length:	18.50 IN (43.94 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	NONE
  Type of Media:	PAPER
  Filter Area:	1143 SQIN
  Plating:
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	4.00 LB (1.81 KG)
