All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

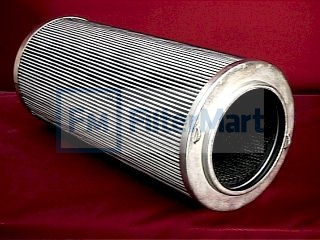

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass
| Micron Rating: | 12.00 ABSOLUTE |
| Beta Rating: | B12 = 200 |
| Collapse Pressure Rating: | 150 PSID |
| Maximum Temperature: | 250 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 50 PSID |
| (A) Outer Diameter, Top: | 5.63 IN (143.00 MM) |
| (B) Outer Diameter, Bottom: | 5.63 IN (143.00 MM) |
| (C) Inner Diameter, Top: | 3.78 IN (96.01 MM) |
| (E) Length: | 14.16 IN (0.00 MM) |
| (F) Thread: | NONE |
| Handle: | YES |
| Seal Material: | VITON |
| Type of Adhesive: | EPOXY |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | PLATED STEEL |
| Type of Media: | MICROGLASS |
| Filter Area: | SQ.IN. |
| Plating: | ZINC PLATED |
| Outer Jacket: | NONE - NONE |
| Configuration: | SINGLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 6.00 LB (2.72 KG) |
