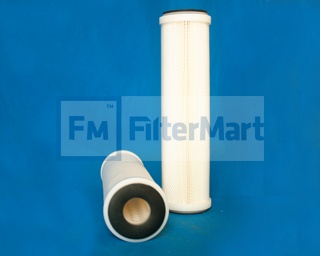

Filtermart™ PLEATED SYNTHETIC ELEMENT

Add To Cart

FMC #05-0569

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	20.00 20
  Beta Rating:
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.80 IN (71.12 MM)
  (C) Inner Diameter, Top:	1.06 IN (26.92 MM)
  (E) Length:	9.90 IN (0.00 MM)
  (F) Thread:

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	POLYPROPYLENE
  Type of Endcap:	POLYPROPYLENE
  Center Tube:	POLYPROPYLENE
  Type of Media:	SYNTHETIC
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	YES
  Configuration:

• Packaging Specifications

  Number per Carton:	6
  Carton Weight:	3.00 LB (1.36 KG)
