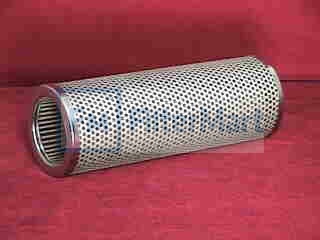

Filtermart™ PLEATED WIRE ELEMENT

Add To Cart

FMC #05-0576

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	40.00 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	212 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.27 IN (83.06 MM)
  (B) Outer Diameter, Bottom:	3.27 IN (83.06 MM)
  (C) Inner Diameter, Top:	1.98 IN (50.29 MM)
  (D) Inner Diameter, Bottom:	1.98 IN (50.29 MM)
  (E) Length:	8.94 IN (50.29 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	NONE
  Type of Media:	304 SS WIRE
  Filter Area:	250 SQ.IN.
  Plating:	N/A
  Outer Jacket:	YES - PERFORATED
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
