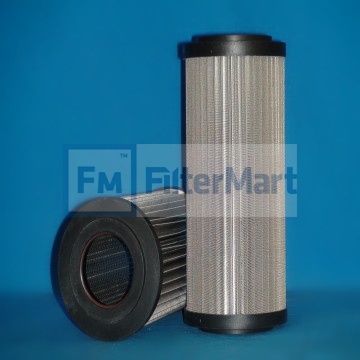

Filtermart™ PLEATED WIRE ELEMENT

Add To Cart

FMC #05-1099

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	60.00 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.90 IN (99.06 MM)
  (B) Outer Diameter, Bottom:	3.90 IN (99.06 MM)
  (C) Inner Diameter, Top:	2.08 IN (52.83 MM)
  (D) Inner Diameter, Bottom:	2.08 IN (52.83 MM)
  (E) Length:	8.27 IN (52.83 MM)
  (F) Thread:

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:
  Type of Endcap:	NYLON
  Center Tube:	STEEL
  Type of Media:	304 SS WIRE
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	1.10 LB (0.50 KG)
