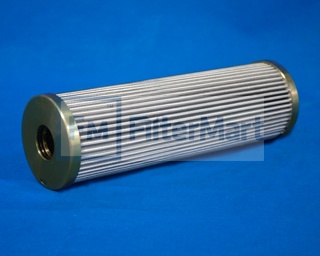

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-1119

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	12.00 ABSOLUTE
  Beta Rating:	B12=200
  Collapse Pressure Rating:	3000 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.91 IN (73.91 MM)
  (B) Outer Diameter, Bottom:	2.91 IN (73.91 MM)
  (C) Inner Diameter, Top:	1.07 IN (27.18 MM)
  (E) Length:	9.41 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA
  Type of Adhesive:
  Type of Endcap:	CORROSION RESISTANT STEEL
  Center Tube:	CORROSION RESISTANT STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  6
