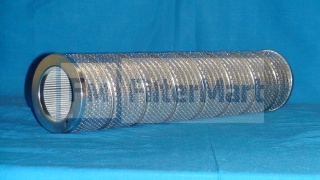

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-1287

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	6.00 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	145 PSI
  Maximum Temperature:	212 F
  Direction of Flow:	OUTSIDE>IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.17 IN (105.92 MM)
  (B) Outer Diameter, Bottom:	4.17 IN (105.92 MM)
  (C) Inner Diameter, Top:	2.83 IN (71.88 MM)
  (D) Inner Diameter, Bottom:	0.41 IN (10.41 MM)
  (E) Length:	18.31 IN (10.41 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:	EPOXY
  Type of Endcap:	STEEL
  Center Tube:	STEEL
  Type of Media:	MICROGLASS
  Filter Area:	1202.27 SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	NONE
  Configuration:

• Packaging Specifications

  Number per Carton:

  1
