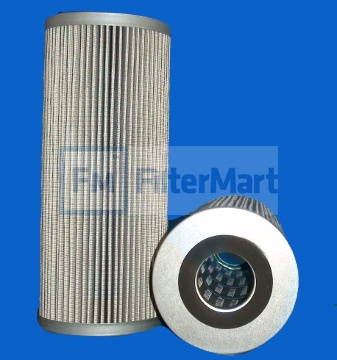

Filtermart™ PLEATED SYNTHETIC ELEMENT

Add To Cart

FMC #05-1376

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 ABSOLUTE
  Beta Rating:	B15=200
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.55 IN (115.57 MM)
  (B) Outer Diameter, Bottom:	4.50 IN (114.30 MM)
  (C) Inner Diameter, Top:	1.75 IN (44.45 MM)
  (D) Inner Diameter, Bottom:	1.75 IN (44.45 MM)
  (E) Length:	11.00 IN (44.45 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	NONE - NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  6
