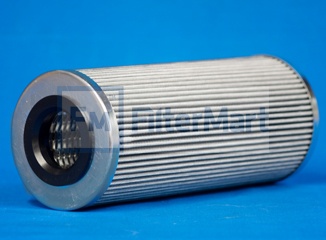

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-1509

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	6.00 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.90 IN (99.06 MM)
  (B) Outer Diameter, Bottom:	3.90 IN (99.06 MM)
  (C) Inner Diameter, Top:	1.60 IN (40.64 MM)
  (D) Inner Diameter, Bottom:	1.60 IN (40.64 MM)
  (E) Length:	9.10 IN (40.64 MM)
  (F) Thread:

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	NONE
  Configuration:

• Packaging Specifications

  Number per Carton:

  1
