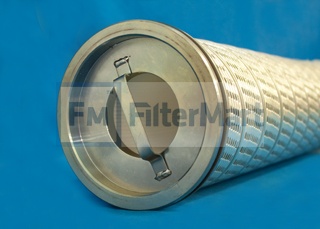

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-1947

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*22 per carton

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	5.00 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:	75 PSI
  Maximum Temperature:	180 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	6.25 IN (158.75 MM)
  (B) Outer Diameter, Bottom:	6.25 IN (158.75 MM)
  (C) Inner Diameter, Top:	2.94 IN (74.68 MM)
  (D) Inner Diameter, Bottom:	2.94 IN (74.68 MM)
  (E) Length:	40.50 IN (74.68 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA
  Type of Adhesive:	EPOXY
  Type of Endcap:	CARBON STEEL
  Center Tube:	NONE
  Type of Media:	SYNTHETIC
  Filter Area:	N/A
  Plating:	NONE
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	22
  Carton Weight:	14.00 LB (6.35 KG)
