All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

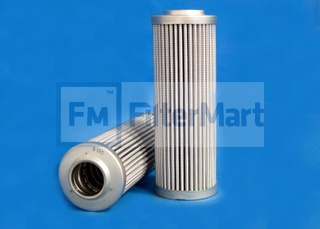

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass
| Micron Rating: | 3.00 ABSOLUTE |
| Beta Rating: | B3 = 200 |
| Collapse Pressure Rating: | 450 PSID |
| Maximum Temperature: | N/A |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 0 PSID |
| (A) Outer Diameter, Top: | 2.17 IN (55.12 MM) |
| (B) Outer Diameter, Bottom: | 2.17 IN (55.12 MM) |
| (C) Inner Diameter, Top: | 1.03 IN (26.16 MM) |
| (D) Inner Diameter, Bottom: | 1.12 IN (28.45 MM) |
| (E) Length: | 6.00 IN (28.45 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | BUNA-N |
| Type of Adhesive: | EPOXY |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | PLATED STEEL |
| Type of Media: | MICROGLASS |
| Filter Area: | SQ.IN. |
| Plating: | ZINC PLATED |
| Outer Jacket: | NONE - NONE |
| Configuration: | SINGLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 0.50 LB (0.23 KG) |
