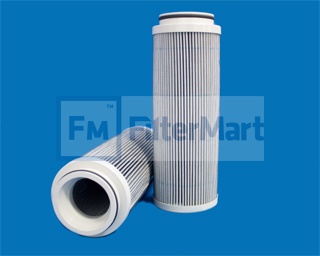

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-2486

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*3 per carton

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	6.00 ABSOLUTE
  Beta Rating:	B6 = 1000
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:	250 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.13 IN (79.50 MM)
  (B) Outer Diameter, Bottom:	3.13 IN (79.50 MM)
  (C) Inner Diameter, Top:	1.74 IN (44.20 MM)
  (E) Length:	20.78 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA N
  Type of Adhesive:	EPOXY
  Type of Endcap:	ALUMINUM
  Center Tube:	NONE
  Type of Media:	SYNTHETIC
  Filter Area:
  Plating:	NONE
  Outer Jacket:	NONE - NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  3
