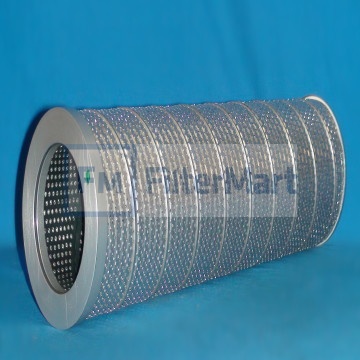

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-2489

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00
  Beta Rating:	B10=200
  Collapse Pressure Rating:	250 PSID
  Maximum Temperature:	250 F
  Direction of Flow:
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.98 IN (126.49 MM)
  (B) Outer Diameter, Bottom:	4.98 IN (126.49 MM)
  (C) Inner Diameter, Top:	3.38 IN (85.85 MM)
  (E) Length:	23.00 IN (0.00 MM)
  (F) Thread:

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	N/A
  Plating:	ZINC
  Outer Jacket:	NONE
  Configuration:	SINGLE W/BOLT HOLE

• Packaging Specifications

  Number per Carton:

  1
