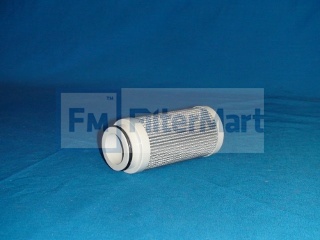

Filtermart™ PLEATED SYNTHETIC ELEMENT

Add To Cart

FMC #05-2590

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	3.00 ABSOLUTE
  Beta Rating:	B3=200
  Collapse Pressure Rating:
  Maximum Temperature:	225 F
  Direction of Flow:
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.12 IN (53.85 MM)
  (B) Outer Diameter, Bottom:	2.12 IN (53.85 MM)
  (C) Inner Diameter, Top:	1.10 IN (27.94 MM)
  (E) Length:	4.73 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:
  Type of Media:	GLASS FIBER
  Filter Area:	N/A
  Plating:	ZINC
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
