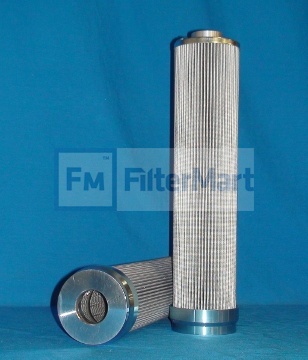

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-2676

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 ABSOLUTE
  Beta Rating:	B10=200
  Collapse Pressure Rating:
  Maximum Temperature:	250 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	30 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.72 IN (94.49 MM)
  (B) Outer Diameter, Bottom:	3.72 IN (94.49 MM)
  (C) Inner Diameter, Top:	1.59 IN (40.39 MM)
  (E) Length:	16.14 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	YES
  Seal Material:	VITON
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:
  Plating:	ZINC PLATED
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	4.00 LB (1.81 KG)
