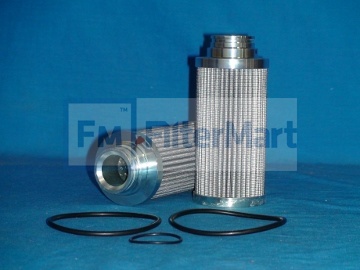

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-2725

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	6.00 ABSOLUTE
  Beta Rating:	B6=200
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.35 IN (59.69 MM)
  (B) Outer Diameter, Bottom:	2.35 IN (59.69 MM)
  (C) Inner Diameter, Top:	0.98 IN (24.89 MM)
  (E) Length:	5.00 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	CORROSION RESISTANT STEEL
  Center Tube:	CORROSION RESISTANT STEEL
  Type of Media:	MICROGLASS
  Filter Area:	N/A
  Plating:	ZINC PLATED
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
