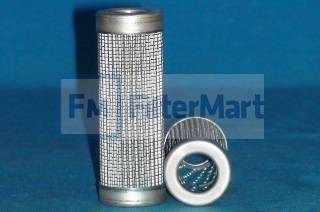

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-3692

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 ABSOLUTE
  Beta Rating:	B10 = 200
  Collapse Pressure Rating:
  Maximum Temperature:	N/A
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	1.12 IN (28.45 MM)
  (B) Outer Diameter, Bottom:	1.12 IN (28.45 MM)
  (C) Inner Diameter, Top:	0.63 IN (16.00 MM)
  (D) Inner Diameter, Bottom:	0.63 IN (16.00 MM)
  (E) Length:	3.12 IN (16.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	N/A
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
