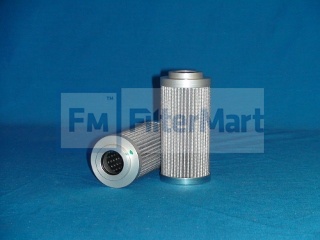

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-5724

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00
  Beta Rating:	BX=200
  Collapse Pressure Rating:	450 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.17 IN (55.12 MM)
  (B) Outer Diameter, Bottom:	2.17 IN (55.12 MM)
  (C) Inner Diameter, Top:	0.99 IN (25.15 MM)
  (E) Length:	4.63 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA
  Type of Adhesive:	EPOXY
  Type of Endcap:	STAINLESS STEEL
  Center Tube:	STAINLESS STEEL
  Type of Media:	FIBERGLASS
  Filter Area:	SQ. IN.
  Plating:	STAINLESS STEEL
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	0.50 LB (0.23 KG)
