All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

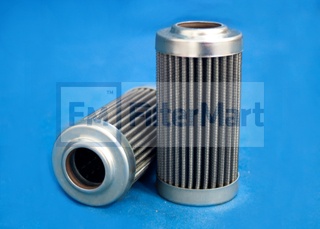

Industrial Filters/Wire Filters/Pleated
| Micron Rating: | 74.00 |
| Beta Rating: | B74=200 |
| Collapse Pressure Rating: | 450 PSID |
| Maximum Temperature: | 250 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 25 PSID |
| (A) Outer Diameter, Top: | 1.88 IN (47.75 MM) |
| (B) Outer Diameter, Bottom: | 1.88 IN (47.75 MM) |
| (C) Inner Diameter, Top: | 0.87 IN (22.10 MM) |
| (D) Inner Diameter, Bottom: | 0.82 IN (20.83 MM) |
| (E) Length: | 3.28 IN (20.83 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | VITON |
| Type of Adhesive: | EPOXY |
| Type of Endcap: | CORROSION RESISTANT STEEL |
| Center Tube: | CORROSION RESISTANT STEEL |
| Type of Media: | 304 SS WIRE |
| Filter Area: | SQ.IN. |
| Plating: | ZINC PLATED |
| Outer Jacket: | NONE |
| Configuration: | SINGLE OPEN END |
| Number per Carton: | 1 |
