All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

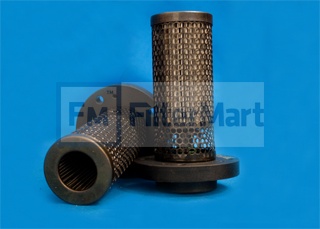

Industrial Filters/Wire Filters/Pleated
| Micron Rating: | 74.00 ABSOLUTE |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | 75 PSID |
| Maximum Temperature: | 250 F |
| Direction of Flow: | INSIDE->OUT |
| Recommended Changeout Differential Pressure: | 25 PSID |
| (A) Outer Diameter, Top: | 2.00 IN (50.80 MM) |
| (B) Outer Diameter, Bottom: | 2.00 IN (50.80 MM) |
| (C) Inner Diameter, Top: | 1.13 IN (28.70 MM) |
| (E) Length: | 4.81 IN (0.00 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | NONE |
| Type of Adhesive: | EPOXY BONDED |
| Type of Endcap: | STEEL |
| Center Tube: | NONE |
| Type of Media: | 304 SS WIRE |
| Filter Area: | SQ.IN. |
| Plating: | NONE |
| Outer Jacket: | YES |
| Configuration: | SINGLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 1.00 LB (0.45 KG) |
