All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

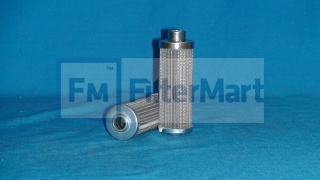

Industrial Filters/Wire Filters/Pleated
| Micron Rating: | 25.00 ABSOLUTE |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | 435 PSID |
| Maximum Temperature: | 400 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 50 PSID |
| (A) Outer Diameter, Top: | 1.38 IN (35.05 MM) |
| (B) Outer Diameter, Bottom: | 1.38 IN (35.05 MM) |
| (C) Inner Diameter, Top: | 0.48 IN (12.19 MM) |
| (E) Length: | 4.14 IN (0.00 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | VITON |
| Type of Adhesive: | EPOXY |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | PLATED STEEL |
| Type of Media: | 304 SS WIRE |
| Filter Area: | 49 SQ.IN. |
| Plating: | ZINC PLATED |
| Outer Jacket: | NONE - NONE |
| Configuration: | SINGLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 0.30 LB (0.14 KG) |
