All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

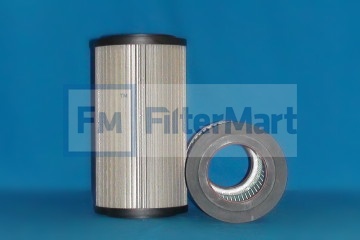

Industrial Filters/Wire Filters/Pleated
| Micron Rating: | 60.00 NOMINAL |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | 145 PSID |
| Maximum Temperature: | 212 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 25 PSID |
| (A) Outer Diameter, Top: | 5.12 IN (130.05 MM) |
| (B) Outer Diameter, Bottom: | 5.12 IN (130.05 MM) |
| (C) Inner Diameter, Top: | 2.95 IN (74.93 MM) |
| (D) Inner Diameter, Bottom: | 2.95 IN (74.93 MM) |
| (E) Length: | 9.84 IN (74.93 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | BUNA-N |
| Type of Adhesive: | |
| Type of Endcap: | STEEL |
| Center Tube: | STEEL |
| Type of Media: | 304 SS WIRE |
| Filter Area: | 552 SQ. IN. |
| Plating: | N/A |
| Outer Jacket: | NONE |
| Configuration: | DOUBLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 3.00 LB (1.36 KG) |
