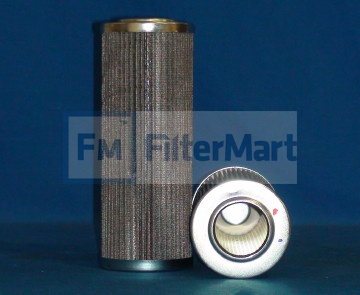

Filtermart™ PLEATED WIRE ELEMENT

Add To Cart

FMC #06-1220

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Wire Filters/Pleated

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	100.00
  Beta Rating:	B10=200
  Collapse Pressure Rating:	290 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.10 IN (78.74 MM)
  (B) Outer Diameter, Bottom:	3.10 IN (78.74 MM)
  (C) Inner Diameter, Top:	1.62 IN (41.15 MM)
  (E) Length:	8.16 IN (0.00 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	304 SS WIRE
  Filter Area:	N/A
  Plating:	ZINC PLATED
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
