All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

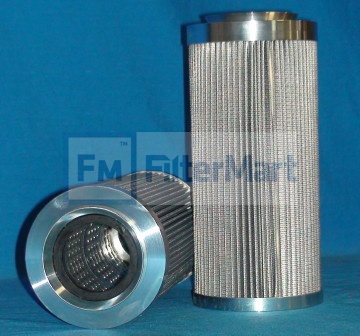

Industrial Filters/Wire Filters/Pleated
| Micron Rating: | 25.00 NOMINAL |
| Beta Rating: | B25=200 |
| Collapse Pressure Rating: | 150 PSID |
| Maximum Temperature: | 225 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 0 PSID |
| (A) Outer Diameter, Top: | 3.90 IN (99.06 MM) |
| (B) Outer Diameter, Bottom: | 3.90 IN (99.06 MM) |
| (C) Inner Diameter, Top: | 2.09 IN (53.09 MM) |
| (D) Inner Diameter, Bottom: | 2.07 IN (52.58 MM) |
| (E) Length: | 8.58 IN (52.58 MM) |
| (F) Thread: | N/A |
| Handle: | NONE |
| Seal Material: | BUNA-N |
| Type of Adhesive: | EPOXY |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | PLATED STEEL |
| Type of Media: | SS WIRE MESH |
| Filter Area: | N/A |
| Plating: | N/A |
| Outer Jacket: | NONE |
| Configuration: | DOUBLE OPEN END |
| Number per Carton: | 1 |
