All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

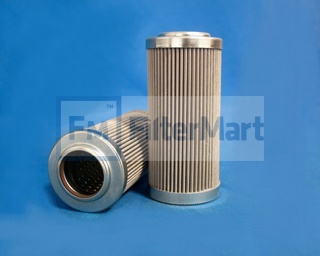

Industrial Filters/Wire Filters/Depth
| Micron Rating: | 10.00 |
| Beta Rating: | |
| Collapse Pressure Rating: | |
| Maximum Temperature: | |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 2.31 IN (58.67 MM) |
| (B) Outer Diameter, Bottom: | 2.31 IN (58.67 MM) |
| (C) Inner Diameter, Top: | 1.31 IN (33.27 MM) |
| (D) Inner Diameter, Bottom: | 1.31 IN (33.27 MM) |
| (E) Length: | 4.80 IN (33.27 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | BUNA-N |
| Type of Adhesive: | |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | STEEL |
| Type of Media: | 304 SS WIRE |
| Filter Area: | SQ.IN. |
| Plating: | |
| Outer Jacket: | YES |
| Configuration: |
| Number per Carton: | 1 |
| Carton Weight: | 2.00 LB (0.91 KG) |
