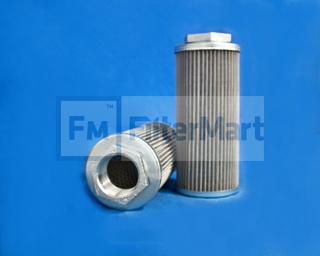

Filtermart™ SUCTION STRAINER

Add To Cart

FMC #09-0095

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Wire Filters/Suction Strainer

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	149.00 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	250 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.00 IN (101.60 MM)
  (B) Outer Diameter, Bottom:	4.00 IN (101.60 MM)
  (E) Length:	9.00 IN (0.00 MM)
  (F) Thread:	1.5"-NPT

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	304 SS WIRE
  Filter Area:	SQ.IN.
  Plating:	N/A
  Outer Jacket:	NONE - NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	1.30 LB (0.59 KG)
