All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

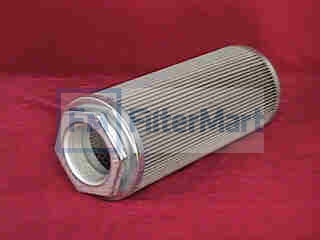

Industrial Filters/Wire Filters/Suction Strainer
| Micron Rating: | 250.00 ABSOLUTE |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | 75 PSID |
| Maximum Temperature: | 250 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 5.91 IN (150.11 MM) |
| (B) Outer Diameter, Bottom: | 5.91 IN (150.11 MM) |
| (C) Inner Diameter, Top: | 4.33 IN (109.98 MM) |
| (D) Inner Diameter, Bottom: | 2.50 IN (63.50 MM) |
| (E) Length: | 12.25 IN (63.50 MM) |
| (F) Thread: | 2-1/2" NPT |
| Handle: | NONE |
| Seal Material: | NONE |
| Type of Adhesive: | EPOXY |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | PLATED STEEL |
| Type of Media: | 304 SS WIRE |
| Filter Area: | SQ.IN. |
| Plating: | |
| Outer Jacket: | NONE - NONE |
| Configuration: | SINGLE OPEN END |
| Number per Carton: | 1 |
