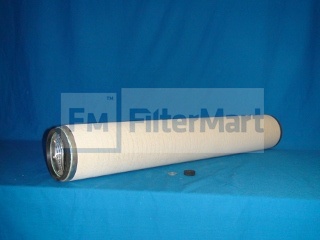

Filtermart™ DEPTH TYPE ELEMENT

Add To Cart

FMC #10-0288

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*28 per carton

Industrial Filters/Depth Filters/Natural or Synthetic Fiber

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	1.00 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:	275 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	5.55 IN (140.97 MM)
  (B) Outer Diameter, Bottom:	5.55 IN (140.97 MM)
  (C) Inner Diameter, Top:	4.25 IN (107.95 MM)
  (E) Length:	36.62 IN (0.00 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	TINNED STEEL
  Type of Media:	FIBERGLASS
  Filter Area:	SQ.IN.
  Plating:	N/A
  Outer Jacket:	YES - COTTON
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	28
  Carton Weight:	22.00 LB (9.98 KG)
