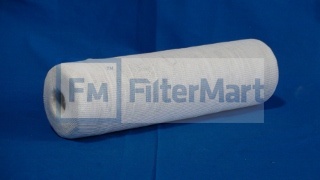

Filtermart™ DEPTH TYPE ELEMENT

Add To Cart

FMC #10-0313

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*14 per carton

Industrial Filters/Depth Filters/Natural or Synthetic Fiber

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00
  Beta Rating:	N/A
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.38 IN (111.25 MM)
  (B) Outer Diameter, Bottom:	4.38 IN (111.25 MM)
  (C) Inner Diameter, Top:	1.50 IN (38.10 MM)
  (D) Inner Diameter, Bottom:	1.50 IN (38.10 MM)
  (E) Length:	16.25 IN (38.10 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	N/A
  Type of Adhesive:	N/A
  Type of Endcap:	N/A
  Center Tube:	CARBON STEEL
  Type of Media:	COTTON BLEND
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	14
  Carton Weight:	29.00 LB (13.15 KG)
