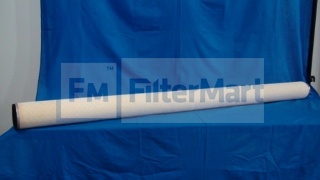

Filtermart™ DEPTH TYPE ELEMENT

Add To Cart

FMC #10-0320

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*36 per carton

Industrial Filters/Depth Filters/Natural or Synthetic Fiber

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	1.00
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	275 F.
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.50 IN (114.30 MM)
  (B) Outer Diameter, Bottom:	4.50 IN (114.30 MM)
  (C) Inner Diameter, Top:	3.30 IN (83.82 MM)
  (E) Length:	72.00 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:	POLYURETHANE
  Type of Endcap:	STEEL
  Center Tube:	STEEL
  Type of Media:
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:

• Packaging Specifications

  Number per Carton:	36
  Carton Weight:	29.00 LB (13.15 KG)
