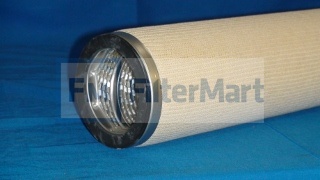

Filtermart™ DEPTH TYPE ELEMENT

Add To Cart

FMC #10-0635

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*4 per carton

Industrial Filters/Depth Filters/Natural or Synthetic Fiber

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	1.00
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	275 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.50 IN (114.30 MM)
  (B) Outer Diameter, Bottom:	4.50 IN (114.30 MM)
  (C) Inner Diameter, Top:	3.10 IN (78.74 MM)
  (D) Inner Diameter, Bottom:	3.10 IN (78.74 MM)
  (E) Length:	72.00 IN (78.74 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	N/A
  Type of Endcap:	TINNED STEEL
  Center Tube:	TINNED STEEL
  Type of Media:	FIBERGLASS
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	YES - SOCK
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	4
  Carton Weight:	32.00 LB (14.51 KG)
