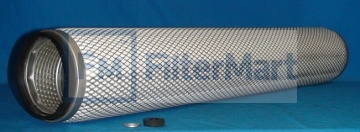

Filtermart™ DEPTH TYPE ELEMENT

1 (1 case) 2 (2 cases) 3 (3 cases) 4 (4 cases) 5 (5 cases) 6 (6 cases) 7 (7 cases) 8 (8 cases) 9 (9 cases) 10 (10 cases) 11 (11 cases) 12 (12 cases) 13 (13 cases) 14 (14 cases) 15 (15 cases) 16 (16 cases) 17 (17 cases) 18 (18 cases) 19 (19 cases) 20 (20 cases) Add To Cart

FMC #10-0756

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Depth Filters/Natural or Synthetic Fiber

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.50
  Beta Rating:	N.A.
  Collapse Pressure Rating:
  Maximum Temperature:	175 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	5.55 IN (140.97 MM)
  (B) Outer Diameter, Bottom:	5.55 IN (140.97 MM)
  (C) Inner Diameter, Top:	4.19 IN (106.43 MM)
  (E) Length:	36.00 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	23.00 LB (10.43 KG)
