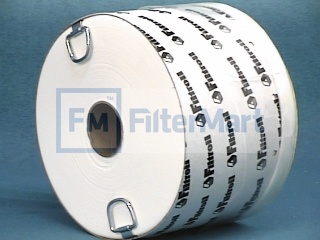

Filtermart™ DEPTH TYPE ELEMENT

Add To Cart

FMC #10-0767

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/General Purpose Filters/Miscellaneous

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	1.00
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	7.00 IN (177.80 MM)
  (B) Outer Diameter, Bottom:	7.00 IN (177.80 MM)
  (C) Inner Diameter, Top:	1.50 IN (38.10 MM)
  (D) Inner Diameter, Bottom:	1.50 IN (38.10 MM)
  (E) Length:	4.25 IN (38.10 MM)
  (F) Thread:

• Physical Specifications

  Handle:	YES
  Seal Material:	NONE
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	CARDBOARD
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	1.70 LB (0.77 KG)
