All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

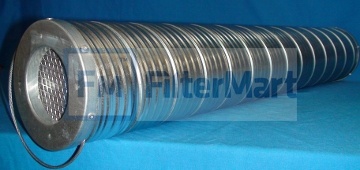

Industrial Filters/Adsorption Filters/Carbon
| Micron Rating: | 0.00 |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | 90 PSID |
| Maximum Temperature: | 120 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 10 PSID |
| (A) Outer Diameter, Top: | 6.00 IN (152.40 MM) |
| (B) Outer Diameter, Bottom: | 6.00 IN (152.40 MM) |
| (C) Inner Diameter, Top: | 3.50 IN (88.90 MM) |
| (D) Inner Diameter, Bottom: | 3.50 IN (88.90 MM) |
| (E) Length: | 36.00 IN (88.90 MM) |
| (F) Thread: | N/A |
| Handle: | YES |
| Seal Material: | BUNA-N |
| Type of Adhesive: | N/A |
| Type of Endcap: | CARBON STEEL |
| Center Tube: | PLATED STEEL |
| Type of Media: | CARBON |
| Filter Area: | SQ.IN. |
| Plating: | N/A |
| Outer Jacket: | YES |
| Configuration: | DOUBLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 26.00 LB (11.79 KG) |
