All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.
*6 per carton

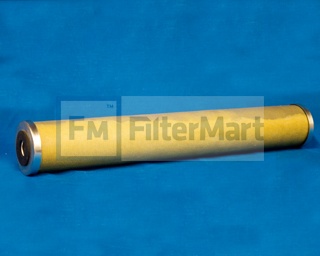

Industrial Filters/Coalescer Filters/Liquid
| Micron Rating: | 3.00 NOMINAL |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | 150 PSID |
| Maximum Temperature: | 225 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 3.56 IN (90.42 MM) |
| (B) Outer Diameter, Bottom: | 3.56 IN (90.42 MM) |
| (C) Inner Diameter, Top: | 1.06 IN (26.92 MM) |
| (D) Inner Diameter, Bottom: | 1.06 IN (26.92 MM) |
| (E) Length: | 23.75 IN (26.92 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | BUNA-N |
| Type of Adhesive: | EPOXY |
| Type of Endcap: | ALUMINUM |
| Center Tube: | NONE |
| Type of Media: | FIBERGLASS |
| Filter Area: | |
| Plating: | CLEAR ANODIZED |
| Outer Jacket: | NONE - NONE |
| Configuration: | DOUBLE OPEN END |
| Number per Carton: | 6 |
| Carton Weight: | 17.00 LB (7.71 KG) |
